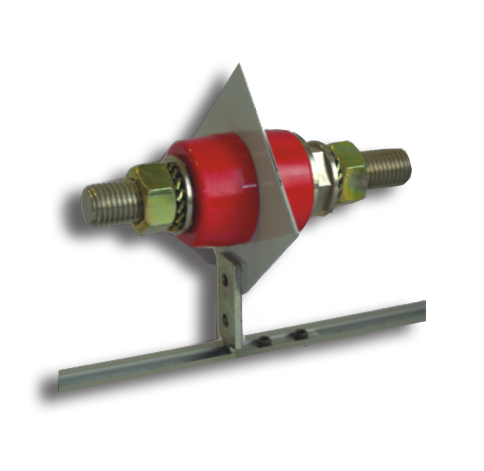

Passing insulators

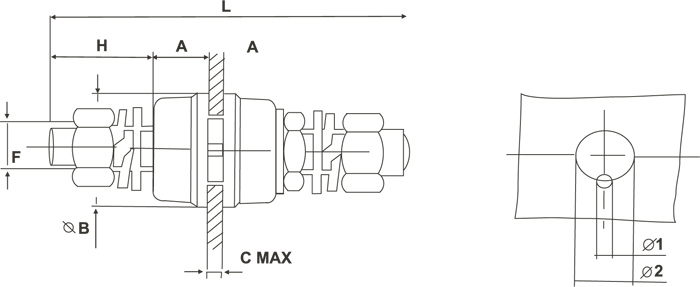

Code	F	L	In rated range	Operating voltage	Test voltage	A	B Ø	C max	H	Ø 1	Ø 2
PI/P 4	M4	50	25	600 V	4 kV	10	15	3	12,5	2,5	8,5
PI/P 6	M6	65	50	1000 V	6 kV	12	22	5	17	3,5	12,5
PI/P 8	M8	80	80	1000 V	6 kV	13,5	25	5	21	3,5	15,5
PI/P 10	M10	95	120	1000 V	6 kV	15	30	5	28	4,5	17,5
PI/P 12	M12	105	200	1000 V	6 kV	17	35	5	29	5	20,5
PI/P 16	M16	135	300	2000V	8 kV	22	43	7	38	5,5	25,5
PI/P 20	M20	155	450	2000V	8 kV	25	54	8	44	6	30,5

All dimensions are in mm

Material: polyglass polyester
Operating temperature: -40^oC +130^oC
Fire reaction / Class: UL94 – VO
Metal elements: nickel brass
