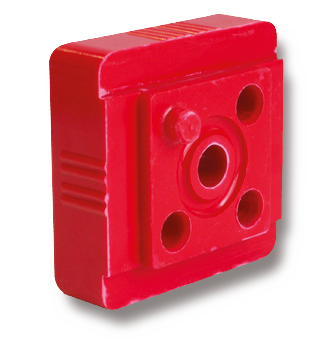

Universal rodholders PU















The universal rodholders PU in assembleable blocks resolve in a rational and cheaper way the problems of connection with nude rods.

For thickness of mm 4-5-6-7 use block PU1 and block PU2.
For thickness of mm 8-10-12 use two blocks PU2.
For two parallel rods of mm 8 use a block PU1, a block PU3 and a block PU2.
For two rods of mm 10 use two blocks PU2 with inserted a block PU3.

Technical parameters

Discharge tension at 23 o C / 20kV
Mechanical resistance/ 3800 kg
Dielektric resistivity at [23oC]/ 22kV/mm
Dielektric resistivity at [120oC]/ 23kV/mm

Material / Polyglass polyester
Operating temperature /: -40 - +130 oC
Fire reaction / Class UL94-VO
Operating voltage /1000V

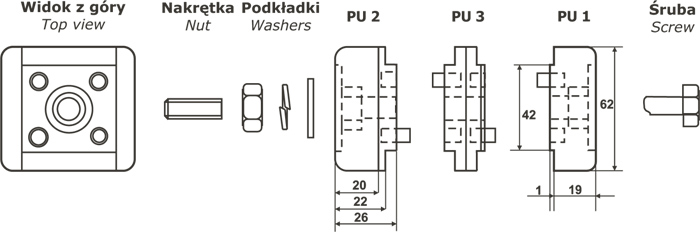

Mouting arrangement:

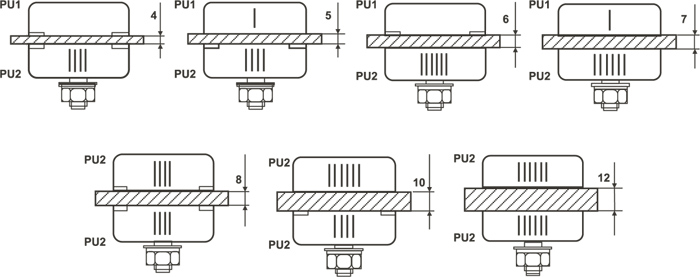

For rodholders at one rod for phase	With rods of	Type	Side	Type	Side	Screw
	mm 4	PU1	O	PU2	IIII	10.10.1970
	mm 5	PU1	I	PU2	IIII	10.10.1970
	mm 6	PU1	O	PU2	III III	10.10.1970
	mm 7	PU1	I	PU2	III III	10.10.1970
	mm 8	PU2	IIII	PU2	IIII	10.10.1970
	mm 10	PU2	IIII	PU2	III III	10.10.1970
	mm 12	PU2	III III	PU2	III III	10.10.1970

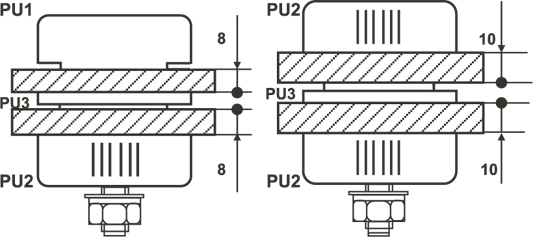

For rodholders at two rods in parallel for phase	With rods of	Type	Side	Type	Side	Screw
	mm 8	PU1	O	PU2	III III	10.10.1990
	with inserted a block PU3
	mm 10	PU2	III III	PU2	III III	10.10.1990
	with inserted a block PU3
