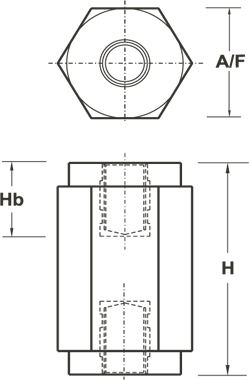

| Code |
Height
H mm |
Insert |
Dimensions |
Nominal Voltage
(AC/DC) |
| |
|
|
A/F mm |
Hb mm |
|
| 14HH415 |
15 |
M4 |
14 |
3,5 |
600/800 |
| 14HH420 |
20 |
M4 |
14 |
5 |
800/1100 |
| 14HH425 |
25 |
M4 |
14 |
5 |
1000/1400 |
| 14HH515 |
15 |
M5 |
14 |
3,5 |
600/800 |
| 14HH520 |
20 |
M5 |
14 |
5 |
800/1100 |
| 14HH525 |
25 |
M5 |
14 |
7 |
1000/1400 |
| 20HH520 |
20 |
M5 |
20 |
5 |
800/1100 |
| 20HH525 |
25 |
M5 |
20 |
7 |
1000/1400 |
| 20HH530 |
30 |
M5 |
20 |
7 |
1200/1600 |
| 20HH535 |
35 |
M5 |
20 |
12 |
1400/1900 |
| 20HH540 |
40 |
M5 |
20 |
12 |
1600/2200 |
| 20HH545 |
45 |
M5 |
20 |
12 |
1800/2500 |
| 20HH550 |
50 |
M5 |
20 |
12 |
2000/2800 |
| 20HH555 |
55 |
M5 |
20 |
12 |
2200/3000 |
| 20HH560 |
60 |
M5 |
20 |
12 |
2400/3300 |
| 20HH620 |
20 |
M6 |
20 |
5 |
800/1100 |
| 20HH625 |
25 |
M6 |
20 |
7 |
1000/1400 |
| 20HH630 |
30 |
M6 |
20 |
7 |
1200/1600 |
| 20HH635 |
35 |
M6 |
20 |
12 |
1400/1900 |
| 20HH640 |
40 |
M6 |
20 |
12 |
1600/2200 |
| 20HH645 |
45 |
M6 |
20 |
12 |
1800/2500 |
| 20HH650 |
50 |
M6 |
20 |
12 |
2000/2800 |
| 20HH655 |
55 |
M6 |
20 |
12 |
2200/3000 |
| 20HH660 |
60 |
M6 |
20 |
12 |
2400/3300 |
| 25HH625 |
25 |
M6 |
25 |
7 |
1000/1400 |
| 25HH630 |
30 |
M6 |
25 |
9 |
1200/1600 |
| 25HH635 |
35 |
M6 |
25 |
12 |
1400/1900 |
| 25HH640 |
40 |
M6 |
25 |
12 |
1600/2200 |
| 25HH645 |
45 |
M6 |
25 |
12 |
1800/2500 |
| 25HH650 |
50 |
M6 |
25 |
12 |
2000/2800 |
| 25HH655 |
55 |
M6 |
25 |
12 |
2200/3000 |
| 25HH660 |
60 |
M6 |
25 |
12 |
2400/3300 |
| 25HH825 |
25 |
M8 |
25 |
7 |
1000/1400 |
| 25HH830 |
30 |
M8 |
25 |
9 |
1200/1600 |
| 25HH835 |
35 |
M8 |
25 |
12 |
1400/1900 |
| 25HH840 |
40 |
M8 |
25 |
12 |
1600/2200 |
| 25HH845 |
45 |
M8 |
25 |
12 |
1800/2500 |
| 25HH850 |
50 |
M8 |
25 |
17 |
2000/2800 |
| 25HH855 |
55 |
M8 |
25 |
17 |
2200/3000 |
| 25HH860 |
60 |
M8 |
25 |
17 |
2400/3300 |
| 35HH830 |
30 |
M8 |
35 |
9 |
1200/1600 |
| 35HH835 |
35 |
M8 |
35 |
12 |
1400/1900 |
| 35HH840 |
40 |
M8 |
35 |
12 |
1600/2200 |
| 35HH845 |
45 |
M8 |
35 |
12 |
1800/2500 |
| 35HH850 |
50 |
M8 |
35 |
17 |
2000/2800 |
| 35HH855 |
55 |
M8 |
35 |
17 |
2200/3000 |
| 35HH860 |
60 |
M8 |
35 |
17 |
2400/3300 |
| 35HH1030 |
30 |
M10 |
35 |
9 |
1200/1600 |
| 35HH1035 |
35 |
M10 |
35 |
12 |
1400/1900 |
| 35HH1040 |
40 |
M10 |
35 |
12 |
1600/2200 |
| 35HH1045 |
45 |
M10 |
35 |
12 |
1800/2500 |
| 35HH1050 |
50 |
M10 |
35 |
17 |
2000/2800 |
| 35HH1055 |
55 |
M10 |
35 |
17 |
2200/3000 |
| 35HH1060 |
60 |
M10 |
35 |
17 |
2400/3300 |
| 45HH1035 |
35 |
M10 |
45 |
12 |
1400/1900 |
| 45HH1040 |
40 |
M10 |
45 |
12 |
1600/2200 |
| 45HH1045 |
45 |
M10 |
45 |
12 |
1800/2500 |
| 45HH1050 |
50 |
M10 |
45 |
17 |
2000/2800 |
| 45HH1055 |
55 |
M10 |
45 |
17 |
2200/3000 |
| 45HH1060 |
60 |
M10 |
45 |
17 |
2400/3300 |
| 45HH1070 |
70 |
M10 |
45 |
22 |
2800/3900 |
| 45HH1080 |
80 |
M10 |
45 |
22 |
3200/4400 |
| 45HH1090 |
90 |
M10 |
45 |
22 |
3600/5000 |
| 45HH10100 |
100 |
M10 |
45 |
22 |
4000/5600 |
| 45HH1235 |
35 |
M12 |
45 |
12 |
1400/1900 |
| 45HH1240 |
40 |
M12 |
45 |
12 |
1600/2200 |
| 45HH1245 |
45 |
M12 |
45 |
12 |
1800/2500 |
| 45HH1250 |
50 |
M12 |
45 |
17 |
2000/2800 |
| 45HH1255 |
55 |
M12 |
45 |
17 |
2200/3000 |
| 45HH1260 |
60 |
M12 |
45 |
17 |
2400/3300 |
| 45HH1270 |
70 |
M12 |
45 |
22 |
2800/3900 |
| 45HH1280 |
80 |
M12 |
45 |
22 |
3200/4400 |
| 45HH1290 |
90 |
M12 |
45 |
22 |
3600/5000 |
| 45HH12100 |
100 |
M12 |
45 |
22 |
4000/5600 |

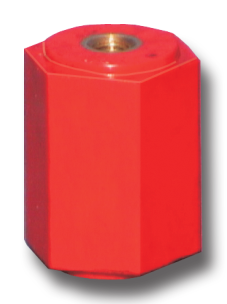

Material: DMC (Dough Moulding Compound)
Insert: Steel (zinc passivated)
Working temperature: (-) 40˚C to 135˚C
